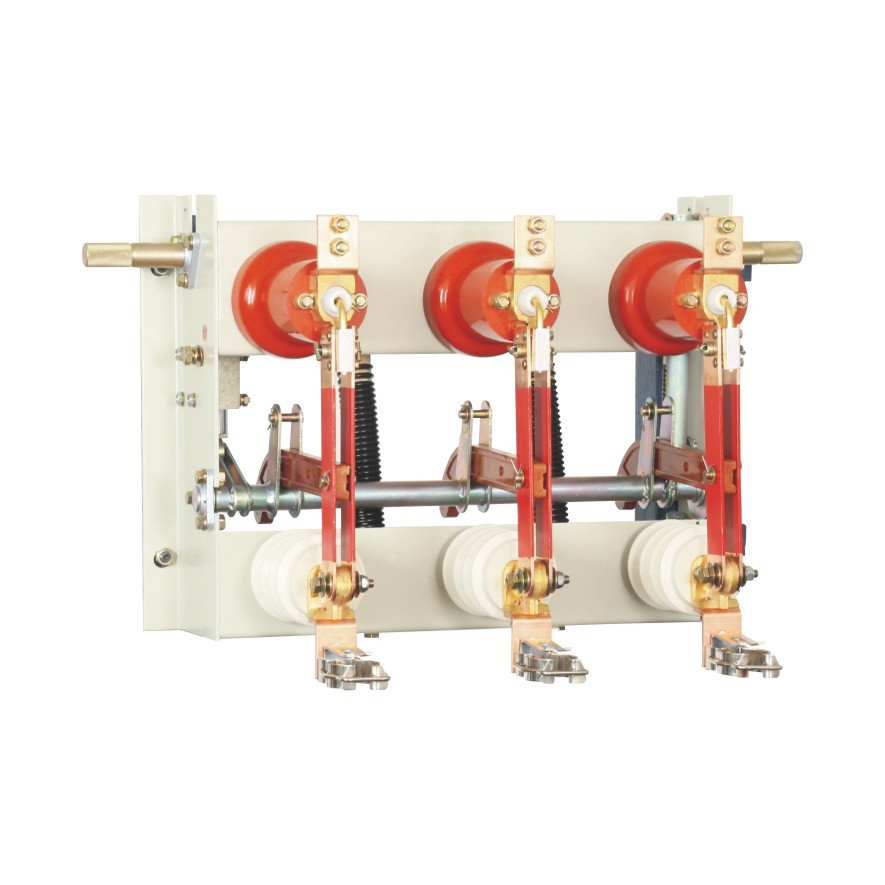

FN3-12、 FN3-12R、 FN3-12R/S Series are used in the network of AC 50Hz、 6kV up to 12kV for breaking or switching on-load and over-load current. This switch is also used for breaking and switching no-loading equipments . The Switch-Fuse Combination(FN3-12R, FN3-12R/S) with RN3 Fuse can switch the short-circuit current, that can protect the switch. They can be equipped with CS3 or CS2 handle as operating mechanism.
Technical Information
Technical Specification |
|
Type | FN3-12 |
Rated voltage(kV) | 12 |
Max.working voltage(kV) | 12 |
Rated current(A) | 400 |
Peak withstand current(kA) | 25 |
Short time current(kA) | 10/2 |

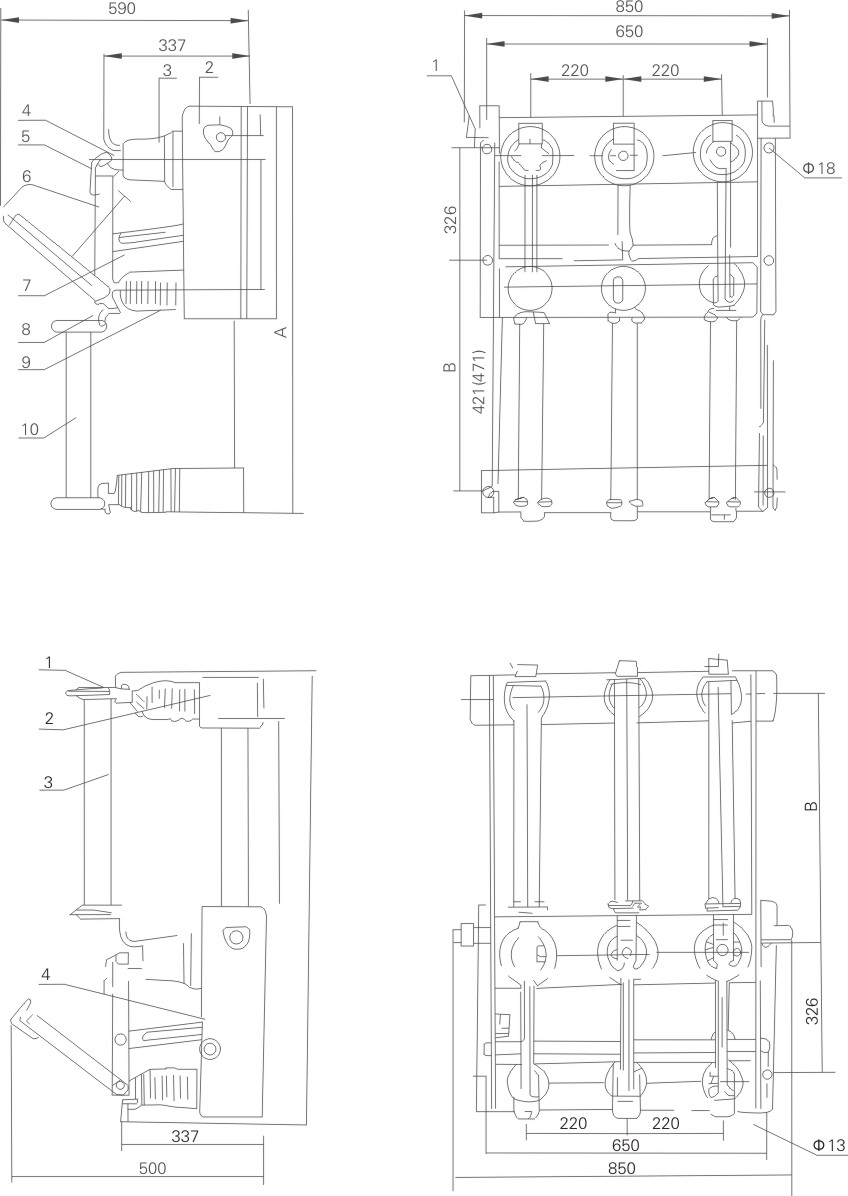

Overall and installation dimensions
