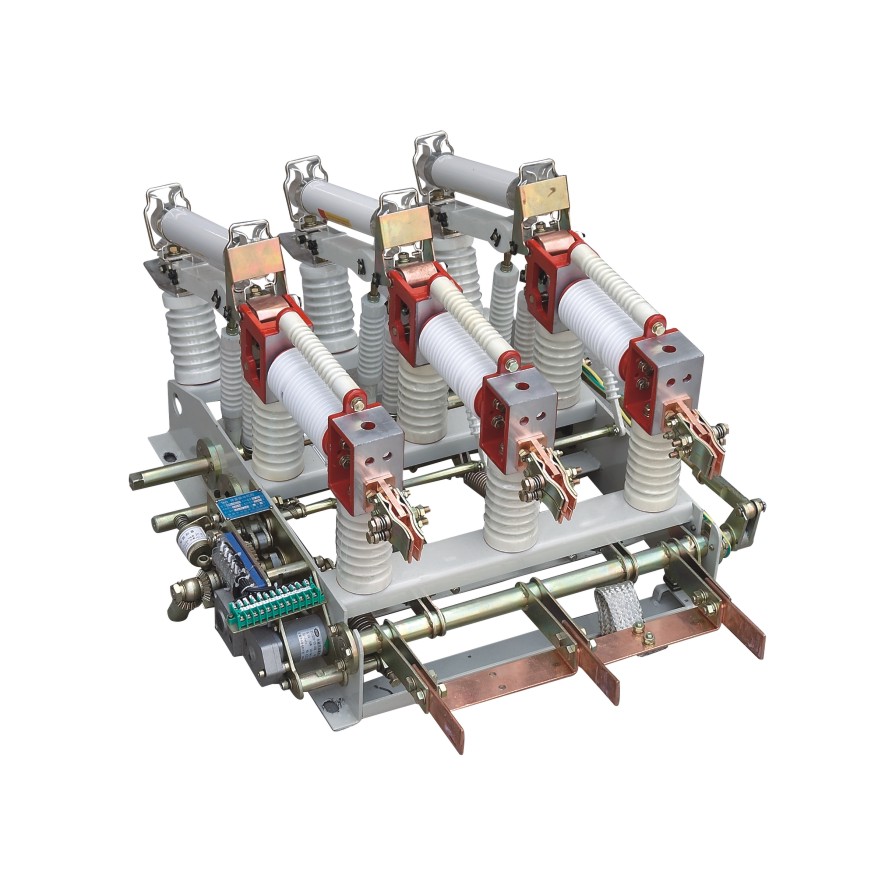

      FZN21 Series Indoor Vacuum Load Break Switch









      FZN21 series indoor M.V. Vacuum load break switch and its fuse combination are applied for 12kV, 24kV and 40.5kV, 50/60Hz power systems. It widely use for industrial and mining area, to cooperate for Ring Main Units and Terminals. It can distribute, control and protect the electric power. This product fulfill with the requirements of following standards:IEC 60265-1/FDIS,IEC 60420 , GB16926 , GB3804 .

This model of switch was combined with frame, isolator, Vacuum interrupter, earth switch, spring mechanism. It has good breaking capacity, safety, and long electrical endurance. This model can break on load current, over load current, and after cooperate with XRNT fuse, that can break short circuit current and protect the equipment work under loss phase. There are visible fracture. There is interlock between isolator, V-LBS and ES, which can forbidden mis-operation.








      Technical Information
      Technical Specification




      Rated voltage
      kV
      12
      24
      40.5
      Rated current
      A
      630
      630
      630
      Rated power frequency
      Hz
      50/60
      50/60
      50/60
      Short circuit making capacity
      kA Peak.
      50
      31.5
      31.5
      Peak withstand current
      kA Peak.
      50
      50
      50
      Short time current
      kA eff.



      1Sec.

      25


      3Sec.

      20
      20
      20
      Max. breaking capacity in co-operation with fuses IEC 62271-105(IEC 420 1990-11)
      A
      2000
      2000
      1700
      Max. fuse current(XRNT Fuse)
      A
      200
      200
      100
      Power frequency withstand voltage 50Hz 1 min,:




      - To earth and between poles
      kV
      42
      65
      95
      - Across isolating distance
      kV
      48
      79
      110
      Impulse withstand voltage 1.2/50μ s:




      - To earth and between poles
      kV
      75
      125
      185
      - Across isolating distance
      kV
      85
      145
      215
      Mechanism Endurance




      -Vauum interrupter
      cycles
      10000
      10000
      10000
      -Main switch and Earth Switch
      cycles
      2000
      2000
      2000

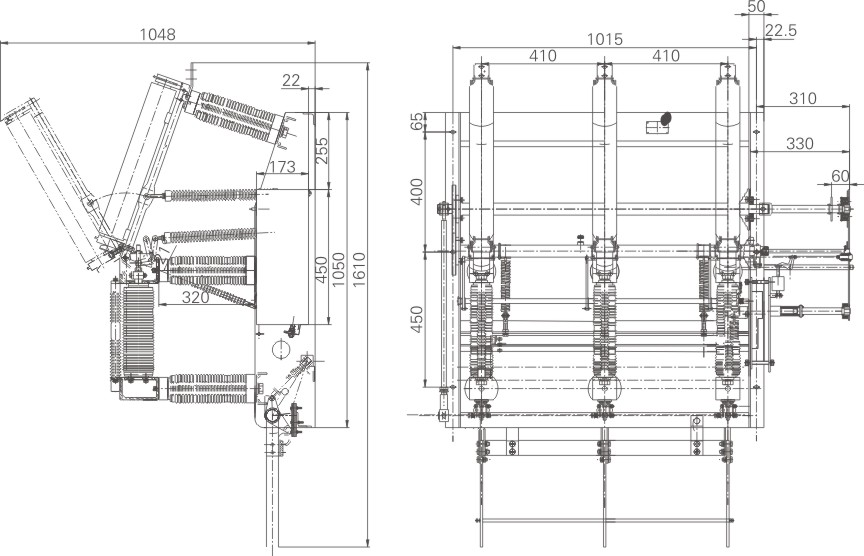

      Overall and installation dimensions
